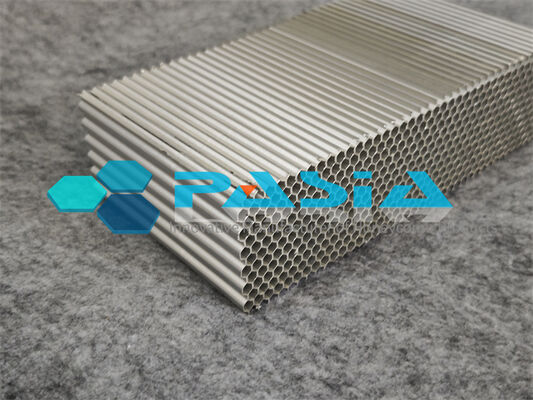

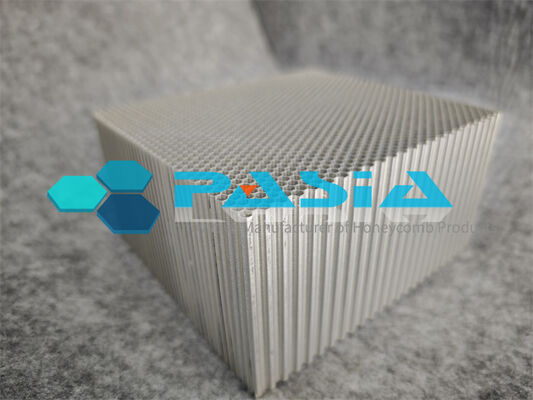

Foil CRVI Chromium Treated Aluminum Honeycomb Core With Cell Side Lenth Less than 3mm
The Foil CRVI Chromium Treated Aluminum Honeycomb Core is a high-performance lightweight core material featuring a cell side length of less than 3 mm, designed for applications requiring exceptional structural efficiency, corrosion resistance, and surface flatness. This micro-porous aluminum honeycomb core is manufactured from precision cold-rolled aluminum foil with a specialized chromate conversion coating, delivering superior strength-to-weight ratio and long-term durability in demanding environments.

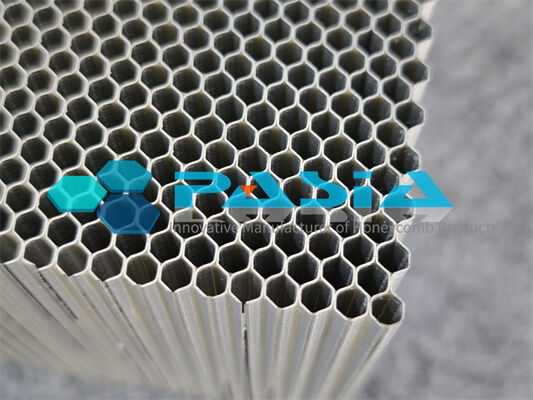

The small cell geometry—with hexagonal cell side length under 3 mm—provides regular hexagonal structure, excellent mechanical properties, and an exceptionally flat surface, making it ideal for high-precision applications where conventional larger-cell honeycomb cores are unsuitable.
Material & Surface Treatment
The core is fabricated from high-quality aluminum alloy foil (typically 3003 or 5052 series), which offers excellent formability, corrosion resistance, and structural strength.
CRVI Chromium Treatment
The foil undergoes a chromate conversion coating process, which chemically forms a dense, nano-scale passive film on the aluminum surface. This treatment delivers three critical benefits:
Benefit Description
Corrosion Barrier Provides excellent protection against oxidation, moisture, salt spray, and industrial atmospheres
Adhesion Enhancement Creates a micro-porous, high-surface-energy layer that greatly improves bonding with structural adhesives (epoxy, phenolic resins)
Surface Stabilization Unifies and stabilizes the foil surface, preventing performance fluctuations caused by uneven natural oxide films
The hexavalent chromium passivation used in CR6 treatment enhances corrosion resistance while meeting modern environmental standards.
---
The Chromate Conversion Treatment Process
The production of hexavalent chromium-treated aluminum foil follows a meticulously controlled multi-step process:
1. Aluminum Foil Preparation – Selection of high-purity aluminum alloys (typically 1100, 3003, 3004, or 5052 series)
2. Deep Cleaning & Pretreatment – Professional degreasing lines thoroughly remove all oils and contaminants, which is foundational for forming a high-quality conversion coating
3. Chromate Conversion – The cleaned aluminum foil is immersed in a chromate-containing solution, where aluminum atoms on the surface undergo a redox reaction with hexavalent chromium, forming an amorphous composite film primarily composed of hydrated chromium oxide
4. Post-Treatment (Rinsing) – Removal of excess chemicals
5. Drying & Final Inspection – Quality verification of coating uniformity and consistency
The resulting conversion coating is ultra-thin (sub-micron level), chemically bonded to the aluminum substrate, and appears iridescent or yellowish-green.
---
Core Performance Advantages
1. Superior Adhesion Strength
The chromate film creates a dense, micro-porous, chemically active surface that acts as an "anchor" for structural adhesives. This micro-porous layer greatly enhances mechanical interlocking and chemical bonding with epoxy and phenolic resins, ensuring the integrity of the honeycomb sandwich structure under long-term vibration and humid-hot environments. Untreated foil, by contrast, is highly susceptible to "debonding" and delamination under stress or environmental aging.
2. Exceptional Corrosion Resistance
The chromate film acts as an inert physical barrier, effectively isolating the aluminum substrate from corrosive media such as air, moisture, and salt spray. Treated foils can withstand 168 hours of exposure to 5% neutral salt fog per ASTM B-117, meeting stringent military and aerospace specifications.
Self-Healing Capability: When the coating is locally scratched, residual soluble hexavalent chromium migrates to the exposed aluminum surface and reforms a passive film in the presence of oxygen and moisture, delaying further corrosion propagation.
3. Enhanced Surface Stability
The treatment unifies and stabilizes the foil's surface condition, preventing performance fluctuations caused by uneven natural oxide films.
4. Preserved Electrical and Thermal Conductivity
The ultra-thin conversion coating has minimal impact on aluminum foil's excellent electrical and thermal conductivity. According to MIL-C-5541 standards, Class 3 (conductive type) chromate coatings typically exhibit contact resistance of less than 5,000 micro-ohms per square inch, making them suitable for applications requiring grounding or electromagnetic shielding.
---
Alloy Selection for Different Applications
Alloy Characteristics Ideal Applications
3003 High strength (~200 MPa tensile), good corrosion resistance, fatigue resistance, cost-effective Aircraft cabin floors, rail vehicle panels, general structural applications
5052 Superior strength and corrosion resistance over 3000 series, aerospace-grade performance High-end applications demanding maximum structural integrity and environmental durability
3003 chromated aluminum foil is the absolute mainstream material for aerospace-grade honeycomb cores due to its optimal balance of strength, corrosion resistance, and cost. 5052 is recommended for applications with clear requirements for higher strength, rigidity, or special environmental corrosion resistance.
---
Manufacturing Specifications
· Foil Thickness: Typically 0.02–0.08 mm (ultra-thin gauges for lightweight cores)
· Temper: H18 or H19 (Full hard) to ensure sufficient compressive buckling stiffness of cell walls
· Quality Standards: Meets MIL-DTL-5541 requirements for chemical conversion coatings on aluminum and aluminum alloys
· Corrosion Testing: Meets AMS-C-7438 requirements
---
Higher-End Applications
Hexavalent chromium-treated aluminum honeycomb cores have become an indispensable lightweight solution across multiple high-end industries:
✈️ Aerospace & Defense
· Aircraft floor panels, bulkheads, and interior structures
· Wing and fuselage components requiring extreme lightweighting
· Satellite and space vehicle structures
· Meets rigorous military specifications (MIL-DTL-5541)
🚄 High-Speed Rail Transportation
· Floor panels, doors, interiors, and fairing panels
· Crash energy management zones requiring impact absorption
🚢 Marine
· Boat hulls and interior panels
· Marine-grade structures demanding superior corrosion resistance
🏗️ Premium Architecture
· High-end building curtain wall systems
· Architectural cladding panels
⚡ New Energy Equipment
· Lightweight structural components for energy applications
---
Specification of Aluminum Honeycomb Core:
| Item | Unit | Specification | ||||||||
| Cell Size | inch | 1/8” | 3/16” | 1/4” | ||||||
| mm | 2.6 | 3.18 | 3.46 | 4.33 | 4.76 | 5.2 | 6.35 | 6.9 | 8.66 | |
| Side Length | mm | 1.5 | 1.83 | 2 | 2.5 | 2.75 | 3 | 3.7 | 4 | 5 |
| Foil Thickness | mm | 0.03-.05 | 0.03-.05 | 0.03- 0.05 | 0.03-.06 | 0.03-0.06 | 0.03-0.08 | 0.03-0.08 | 0.03-0.08 | 0.03-.08 |
| Width | mm | ≤440 | ≤440 | ≤440 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 |
| Length | mm | ≤1500 | ≤1500 | ≤2000 | ≤3000 | ≤3000 | ≤3200 | ≤4000 | ≤4000 | ≤5500 |
| Height | mm | 1.7~150 | 1.7~150 | 1.7~150 | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 |
|
|
||||||||||
| Item | Unit | Specification | ||||||||
| Cell Size | inch | 3/8” | 1/2” | 3/4” | 1” | |||||
| mm | 9.53 | 10.39 | 12.7 | 13.86 | 17.32 | 19.05 | 20.78 | 25.4 | ||
| Side Length | mm | 5.5 | 6 | 7.33 | 8 | 10 | 11 | 12 | 15 | |
| FoilThickness | mm | 0.03-.08 | 0.03-0.08 | 0.03-0.08 | 0.03-.08 | 0.03-0.08 | 0.03-0.08 | 0.03-0.08 | 0.03- 0.08 | |
| Width | mm | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | |
| Length | mm | ≤5700 | ≤6000 | ≤7500 | ≤8000 | ≤10000 | ≤11000 | ≤12000 | ≤15000 | |
| Height | mm | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 | |
Specifications can be customized according to customer’s requirement.
